PCI Express 16-Lane – BitifEye

Switching Solutions – The BIT-2100B Series

Play Video

Quick multi-lane testing for receiver (RX), transmitter (TX), cable and connector DUTs
Highest level of test automation
Fastest test execution, shortest test times
Provides high throughput and higher test instrument availability
Ultimate data quality
Fully integrated software
Minimum wear for instrument and cable connectors

DisplayPort Use Cases

MIPI D-PHY Use Cases

PCI Express 16-Lane PCI Express 8-Lane PCI Express 6-Lane PCIe Express 4-Lane

PCI Express 16-Lane

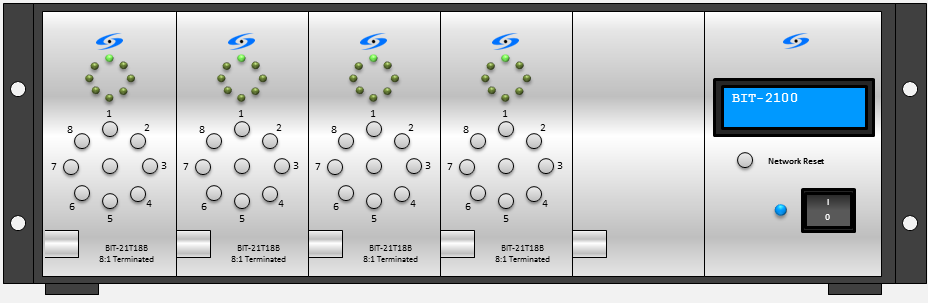

PCI Express 16-Lane TX Test (Gen4)

Switch 16-Lane TX Bundle

BIT-4000-2216-1
(2100 Series Switch System Bundle, supporting PCIe 5.0 and below, TX 16 Lane Switch, 2x 16:1 Modules, Terminated, DC to 26.5 GHz)

PCI Express 16-Lane RX/TX Test (Gen5)

Switch 16-Lane TX / RX Bundle

Switch 16-Lane TX / RX Bundle 2

BIT-4000-2216-1
(2100 Series Switch System Bundle, supporting PCIe 5.0 and below, TX 16 Lane Switch, 2x 16:1 Modules, Terminated, DC to 26.5 GHz)

BIT-4000-2217-1
(2100 Series Switch System Bundle, supporting PCIe 5.0 and below, RX 16 Lane Switch, 2x 16:1 Modules, Unterminated, DC to 26.5 GHz)

PCI Express 8-Lane

PCI Express 8-Lane TX Test

PCI Express 8-Lane TX Test

Two switch modules 8:1, DC to 26.5 GHz, terminated
(BIT-4000-2118-2)
One Mainframe (BIT-4000-2100-1)

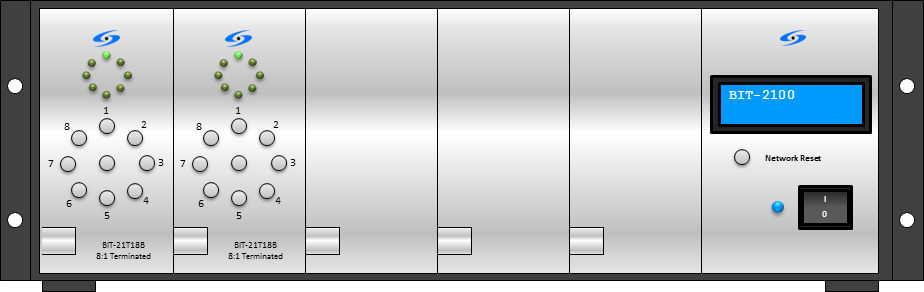

8-Lane PCIe TX configuration System Card

PCI Express 8-Lane RX/TX Test

PCI Express 8-Lane TX or RX Test

Two switch modules 8:1, DC to 26.5 GHz, terminated
(BIT-4000-2118-2)
Two switch modules 8:1, DC to 26.5 GHz, unterminated
(BIT-4000-2119-1)
One Mainframe (BIT-4000-2100-1)

8-Lane PCIe RX / TX configurationm ASIC

PCI Express 6-Lane

PCI Express 6-Lane TX Test (Gen4)

PCI Express 6-Lane TX Test

Two switch modules 6:1, DC to 26.5 GHz, terminated
(BIT-4000-2116-1)
One Mainframe (BIT-4000-2100-1)

PCI Express 6-Lane ASCI Add-in Card TX Configuration

PCI Express 6-Lane RX/TX Test (Gen5)

PCI Express 6-Lane TX or RX Test

Two switch modules 6:1, DC to 26.5 GHz, terminated
(BIT-4000-2116-1)
Two switch modules 6:1, DC to 26.5 GHz, unterminated
(BIT-4000-2117-1)
One Mainframe (BIT-4000-2100-1)

6-Lane PCI Express RX / TX Configuration

PCIe Express 4-Lane

PCI Express 4-Lane TX Test (Gen4)

PCI Express 4-Lane TX Test

Two switch modules 4:1, DC to 26.5 GHz, terminated
(BIT-4000-2114-1)
One Mainframe (BIT-4000-2100-1)

PCI Express 4-Lane TX System Board Configuration

PCI Express 4-Lane RX/TX Test (Gen5)

PCIe 4-Lane TX or RX Test

Two switch modules 4:1, DC to 26.5 GHz, terminated
(BIT-4000-2114-1)
Two switch modules 4:1, DC to 26.5 GHz, unterminated
(BIT-4000-2115-1)
One Mainframe (BIT-4000-2100-1)

PCI Express 4-Lane RX / TX Configuration
